WS300T60LSystems

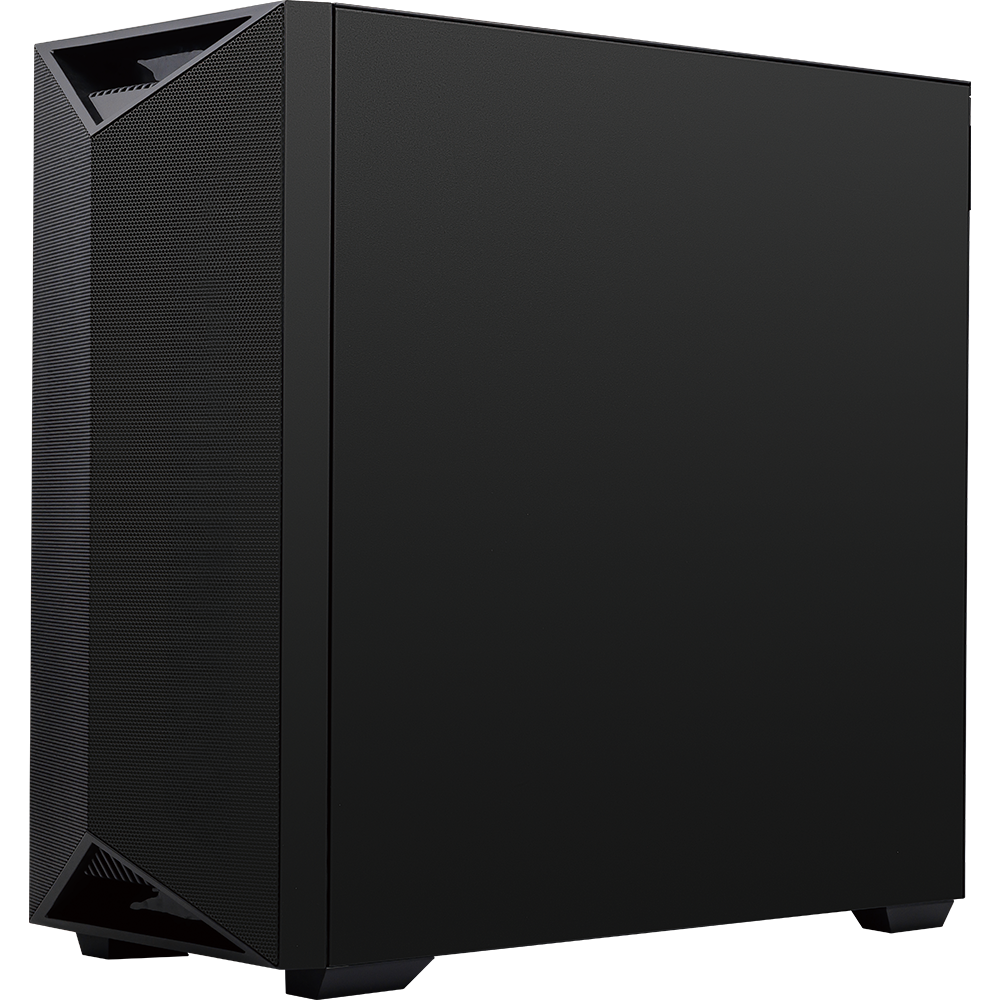

MSI XpertStation WS300 NVIDIA Grace Blackwell Workstation
NVIDIA GB300 Grace Blackwell Ultra personal AI supercomputer, built on the CT60-S8060 platform: a single NVIDIA Grace CPU Superchip with 72 Arm Neoverse V2 cores paired with a single NVIDIA Blackwell Ultra GPU for 748GB of total coherent memory, onboard 400G QSFP112 ports with NVIDIA ConnectX-8 SuperNICs, and up to four M.2 NVMe drive slots. Based on NVIDIA DGX Station.
GPU Partner supplies the XpertStation WS300 as a complete system, specified and tested to your workload, with storage and networking configured per order. It runs on your own network — models, prompts and data stay in the building. Key platform capacity: 1600W power. Full specifications are listed below and in MSI's product portfolio.
- Price
- available on request
- Form Factor
- Tower
- Product Class
- Workstation
- Architecture
- NVIDIA DGX Station
- Base Board
- CT60-S8060
- CPU
- NVIDIA Grace
- Package
- CPU Superchip
- Cores
- 72 Arm Neoverse V2
- Sockets
- 1 (single-socket)
- GPU
- NVIDIA Blackwell Ultra
- GPU Count
- 1
- GPU Slot
- 1x 600W double-wide
- Total Coherent
- 748GB
- CPU Memory
- 496GB LPDDR5X
- CPU Bandwidth
- 396GB/s
- GPU Memory
- 252GB HBM3e
- GPU Bandwidth
- 7.1TB/s
- M.2 Gen5
- 2x 2280 PCIe 5.0 x4
- M.2 Gen6
- 2x 2280 PCIe 6.0 x4
- Total M.2 Slots
- 4x NVMe
- Double-Wide
- 1x 600W DW
- Single-Wide
- 3x SW
- Wireless M.2
- 1x PCIe 2.0 x1 2230
- PCIe Cards Supported
- 1
- High-Speed
- 2x QSFP112 400G
- SuperNIC
- NVIDIA ConnectX-8
- Ethernet
- 1x 10GBase-T
- LAN Controller
- Marvell AQC113
- TPM
- On-board TPM 2.0
- Root of Trust
- Microchip CEC1736
- RoT Availability
- Supported
- Wattage
- 1600W
