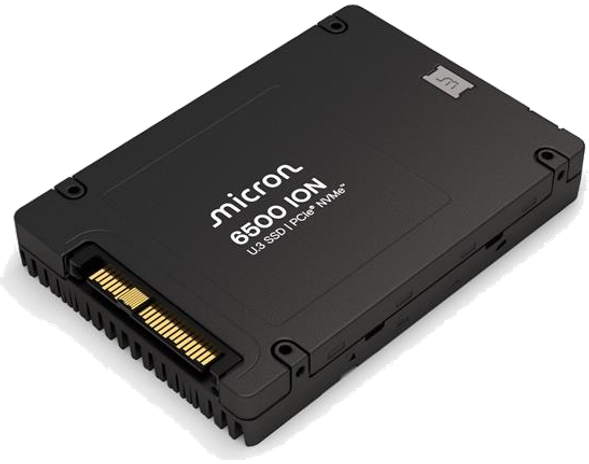

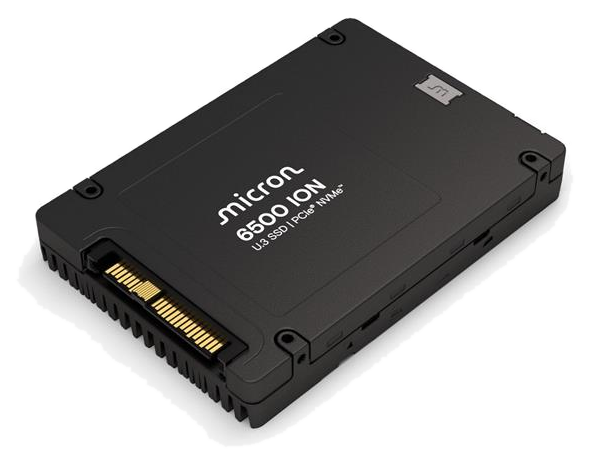

Micron 6500 ION 30.72TB PCIe 4.0 NVMe U.3 2.5" Data Center SSD
MTFDKCC30T7TGRAvailable to order
Micron 6500 ION high-capacity data center NVMe SSD, 30.72TB in a 2.5-inch U.3 15mm form factor on PCIe 4.0 x4, built on Micron 232-layer TLC NAND. Sequential read/write up to 6,800/5,000 MB/s and 4KB random read/write up to 1,000,000/200,000 IOPS. Rated 56,000TB written (1 DWPD), with end-to-end data path protection, power loss protection and AES 256-bit self-encryption.
- Interface
- PCIe 4.0 x4
- Protocol
- NVMe 1.4c
- Form Factor
- U.3 15mm 2.5-inch
- NAND Flash
- 232L TLC NAND
- Application
- Capacity / ION
- Backwards Compat
- U.2 tri-mode bay
- Capacity
- 30.72TB
- Sector Size
- 512 / 4,096 B
- Sequential Read
- 6,800 MB/s
- Sequential Write
- 5,000 MB/s
- Random Read (4K)
- 1,000,000 IOPS
- Random Write (4K)
- 200,000 IOPS
- TBW
- 56,000TB (56 PBW)
- Endurance (DWPD)
- 1.0 (5yr)
- UBER
- <1 in 10^17 bits
- Active Read
- 15 W
- Active Write
- 20 W
- Low-power State
- 5 W
- Encryption
- AES 256-bit
- Data Protection
- End-to-end
- Power Loss Protect
- Supported
- Sanitize
- Supported
- TAA
- Compliant
Drive
Capacity
Performance
Endurance
Power
Security
Priceavailable on request
