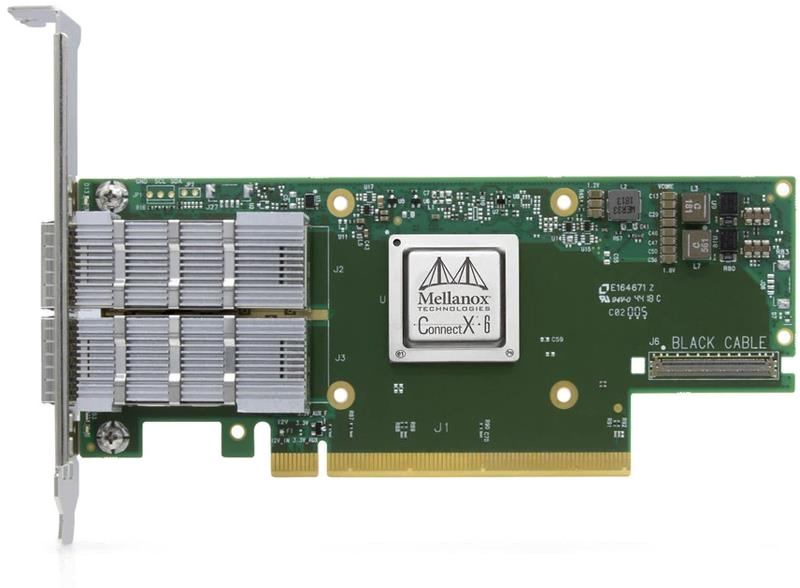

NVIDIA Mellanox ConnectX-6 VPI HDR 200Gb/s Dual-Port QSFP56 Adapter
MCX653106A-HDATAvailable to order
NVIDIA Mellanox ConnectX-6 VPI adapter, two QSFP56 ports each running 200 Gb/s HDR InfiniBand or 200 Gigabit Ethernet on a PCIe Gen3/Gen4 x16 host interface. Falls back across HDR100, EDR, FDR, QDR, DDR and SDR InfiniBand and 100/50/40/25/10 Gb/s Ethernet, delivering sub-600ns latency and 215 million messages per second. Typical power is 23.6W with passive cables, with up to 5W available per QSFP56 port; operating range 0 to 55°C.
- Family
- ConnectX-6 VPI
- Ports
- 2× QSFP56
- Max Port Speed
- 200 Gb/s
- Protocol
- InfiniBand or Ethernet
- Bracket
- Tall bracket
- Max Rate
- HDR 200 Gb/s
- Fallback Rates
- HDR100, EDR, FDR
- Legacy Rates
- QDR, DDR, SDR
- Latency
- Sub-600 ns
- Message Rate
- 215 M msg/s
- Max Rate
- 200 GbE
- Supported Rates
- 100/50/40/25/10G
- PCI Express
- Gen3 / Gen4 x16
- SerDes Rate
- 8.0 / 16.0 GT/s
- Typical Power
- 23.6 W passive
- Per-Port Budget
- 5 W max
- Operating Temp
- 0 to 55°C
- Non-Op Temp
- -40 to 70°C
Adapter
InfiniBand
Ethernet
Host Interface
Power & Environment
Priceavailable on request
