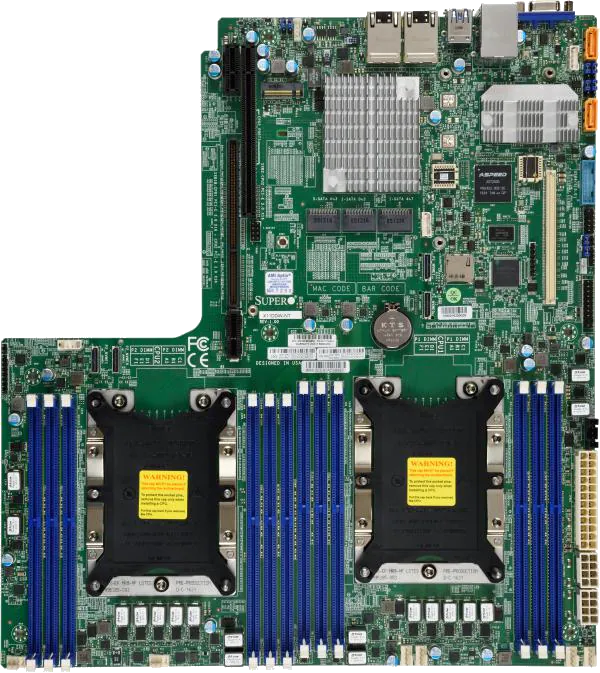

Supermicro X11DDW-NT Dual LGA-3647 WIO Server Motherboard
MBD-X11DDW-NTAvailable to order
Supermicro X11DDW-NT server motherboard in the proprietary WIO form factor, 12.3 by 13.4 inches, with dual Socket P (LGA-3647) support for Intel Xeon Scalable and 2nd Gen Xeon Scalable processors up to 205W TDP over dual UPI links at 10.4 GT/s. Intel C622 chipset with twelve DIMM slots taking up to 3TB of 3DS ECC RDIMM or LRDIMM at DDR4-2933, or up to 2TB of Optane DC Persistent Memory in memory mode on Cascade Lake. Fourteen SATA3 ports with RAID 0/1/5/10, dual 10GBase-T from the C622, and ASPEED AST2500 IPMI 2.0 with KVM over dedicated LAN.
- Form Factor
- Proprietary WIO
- Dimensions
- 12.3" × 13.4"
- Chipset
- Intel C622
- BIOS
- 256MB UEFI
- Socket
- 2× LGA-3647 (P)
- Supported CPUs
- Xeon Scalable
- Generation
- 1st and 2nd Gen
- Max TDP
- 205 W
- UPI Links
- 2 at 10.4 GT/s
- DIMM Slots
- 12
- Max Capacity
- 3TB
- Memory Types
- 3DS RDIMM / LRDIMM
- Max Speed
- DDR4-2933 ECC
- Persistent Memory
- 2TB Optane DCPMM
- Voltage
- 1.2V
- Left Riser
- PCIe 3.0 x32
- Right Riser
- PCIe 3.0 x16
- AOM Slot
- PCIe 3.0 x16
- M.2
- PCIe 3.0 x4, M-key
- M.2 Lengths
- 2242 to 22110
- SATA
- 14× SATA3 6 Gb/s
- SATA RAID
- 0, 1, 5, 10
- SuperDOM
- 2 ports
- LAN
- 2× 10GBase-T
- USB
- 4× USB 3.2 Gen1
- Video
- 1× VGA
- BMC
- ASPEED AST2500
- IPMI
- 2.0 with KVM
- Dedicated LAN
- Yes
- Node Manager
- Intel, supported
- Software
- SuperDoctor 5, SUM
- Fan Headers
- 6× 4-pin PWM
- Operating Temp
- 10 to 35°C
- Non-Op Temp
- -40 to 70°C
- Op Humidity
- 8-90% non-cond.
- Non-Op Humidity
- 5-95% non-cond.
